CBF500
Spectral response 300-900 nm
Analysis duration 5 ns, 10 ns, 20 ns, 50 ns
CCD readout resolution 1024 x 1024 pixels, 12-bit A/D, 16-bit A/D, cooling
Remote control Ethernet
-
FTD10000
Channel number 1
Vertical resolution 13 bits
BW / max. sample rate 7 GHz / 1800 GS
Remote control Ethernet
-
GFT1000
Channel number 128 to 4000
Delay resolution 1 ps, 100 ps
Output amplitude (50 Ω load) 1,5 to 5 V, 15 to 50 V, 3 to 10 V, 3.3V, OPT
Remote control Ethernet
-
GFT1008
Channel number 4 to 16
Delay resolution 1 ps
Output amplitude (50 Ω load) TTL, OPT, 10 V, 50 V
Remote control Ethernet
-
GFT101
Input pulse 2.5 to 10 V
Output wavelength 1310 nm
Output level 0.3 mW
Power None
-
GFT1012
Channel number 2, 4
RMS jitter 5 ps
Output amplitude (50 Ω load) 10 V
Remote control Ethernet
-
GFT1018
Channel number 8
RMS jitter 100 ps
Output amplitude (50 Ω load) 10 V
Remote control Ethernet
-

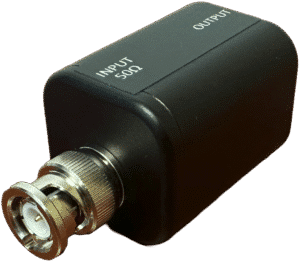

GFT102
Input pulse 2.5 to 10 V
Output wavelength 1310 nm, 1550nm, 850 nm
Output level 1 mW
Power None
-
GFT1064
Channel number 4, 8
Delay resolution 100 ps
Output amplitude (50 Ω load) 5 V, 10 V, 50 V, LVDS
Remote control Ethernet, USB
-
GFT144
Function 4 prog. delays
Output width Up to 1 s
Output level LVPECL
Power +5 V
-

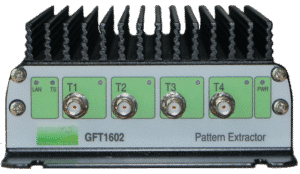

GFT1602
Channel number 4
RMS jitter 25 ps
Output amplitude (50 Ω load) 3.3V
Remote control Ethernet
-
GFT1604
Channel number 4, 8
Delay resolution 1 ps, 100 ps
Output amplitude (50 Ω load) 5 V, 10 V, 50 V, LVDS
Remote control Ethernet, USB
-
GFT1620
Channel number 20
Delay resolution 100 ps
Output amplitude (50 Ω load) 5 V, 10 V, 50 V, LVDS
Remote control Ethernet, USB
-
GFT1804
Channel number 2, 4, 8
Delay resolution 1 ps, 100 ps
Output amplitude (50 Ω load) 5 V, 10 V, 50 V, LVDS
Remote control Ethernet, USB
-
GFT200
Input pulse >50 µW
Input wavelength 1310 – 1550 nm
Output 10 V / 50 Ω
Power +12 V
-
GFT2005
Channel number 5
Time resolution 12 ps
Time range 100 s
Remote control Ethernet
