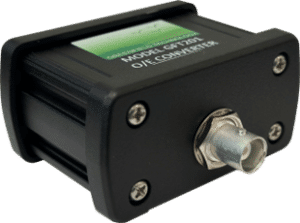

GFT201
Input pulse >50 µW
Input wavelength 1260 -1650 nm, 850 nm
Output 10 V / 50 Ω, 5 V / 50 Ω
Power USB
-
GFT2016
Channel number 16
Time resolution < 10 ps
Time range 10 s
Remote control Ethernet
-
GFT2044
Reference Clock Input 100 MHz
Clock frequency 1 to 4 Ghz
Programmable phase 10 fs
Remote control Ethernet
-

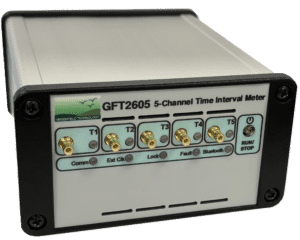

GFT2605
Channel number 5
Time resolution 20 ps
Time range 100 s
Remote control Ethernet, USB
-
GFT300
Input pulse / width 100 mV to 1 V / 500 ps
Frequency 40 to 100 MHz
Outputs >1 V, sin shape
Power +12 V
-
GFT3001
RMS jitter 15 ps
Output power 5 mW
Synchronize up to 256 delay generators
Remote control Ethernet
-

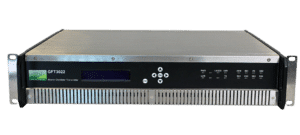

GFT3022
RMS jitter 15 ps
Output power > 0 dBm
Synchronize up to 1024 delay generators
Remote control Ethernet
-
GFT4016
Channel number 4, 8, 16
RMS jitter < 1 ps
Insertion loss < 14 dB
Remote control –
-
GFT4032
Channel number 24, 32
RMS jitter < 1 ps
Insertion loss <17 dB
Remote control –
-
GFT614
Function 1 to 4 channel drivers
Input pulse +2 V or -2 V or ± 0.2 V
Output rise / level <1 ns / TTL
Power +5 V
-
GFT6304
Channel number 4
Vertical resolution 12 bits
BW / max. sample rate 750 MHz / 3.2 GS
Remote control FMC
-
GFT632
Function 32 V pulse
Output width 1 µs
Output level 32 to 70 V / 50 Ω
Power +12 V
-
GFT644
Function 4 channel drivers
Input pulse +2 V or -2 V or ± 0.2 V
Output rise / level <1 ns / TTL
Power +5 V
-
GFT7021
Pulse rise time 30 ps
Pulse amplitude > 2 V / 50 Ω
Pulse duration 40 to 250 ps
Remote control –
-
GFT7048
Channel number 48
Output amplitude LVDS
Timing resolution 0.96 GS/s
Remote control Ethernet
-
GFT745
Channel number 4, 8
Delay resolution 0.25 ps
Output amplitude (50 Ω load) 5 V
Remote control Ethernet, USB
